Space-Efficient Curved Belt Conveyor Solutions for Industrial Material Handling

Skytech Ultrafab Curve Conveyor Belts enable material transport systems to change direction through curves of 30°, 45°, 60°, 90°, and 180° within the production floor plan — eliminating the need for transfer points, reducing product damage, and allowing compact system layouts in pharmaceutical, food processing, logistics, and manufacturing facilities. Each belt is engineered to the specific curve radius, belt width, and surface requirement of the installation, using food-grade PVC, polyurethane, or fabric constructions.

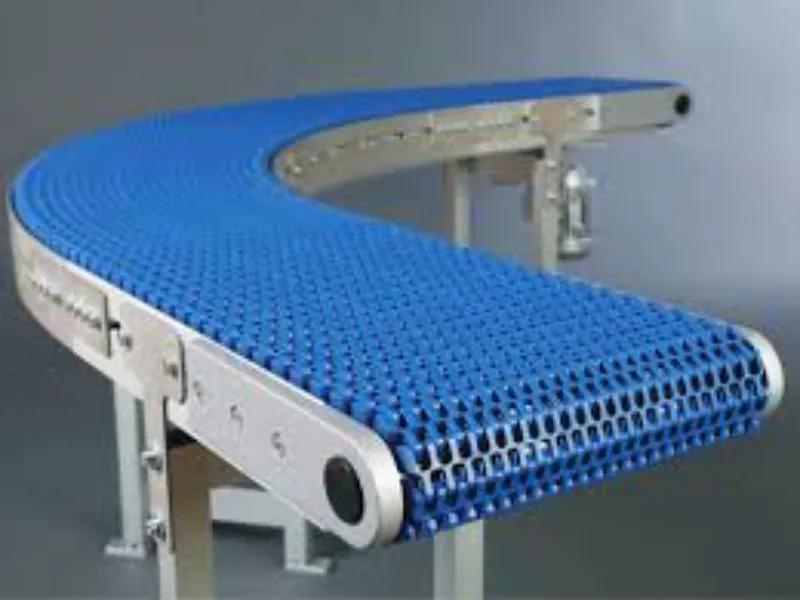

What Is a Curve Conveyor Belt?

A Curve Conveyor Belt is a specially engineered belt designed to travel around a horizontal curve in a conveyor system. Unlike straight belts, curve belts must be tapered or profiled to travel smoothly around the bend without tracking off the edges of the curved conveyor frame. The outer edge of the belt must travel further than the inner edge in each revolution, requiring a trapezoidal or wedge cross-section that compensates for the difference in path length across the belt width.

Features and Benefits

• Custom Curve Radius: Fabricated for any curve angle from 30° to 180° and any curve radius — system designed to the available floor space and material handling requirement
• Food-Grade Surfaces: PVC and polyurethane belt surfaces in white food-grade grades compliant with EU 10/2011 and FDA 21 CFR for direct food-contact conveyor applications
• Non-Slip Surface Options: Smooth, rough-top, and diamond-pattern surface textures available for conveying products on inclines around curves without sliding or product damage
• Fabric and Rubber Construction: Polyester fabric carcass with PVC, PU, or rubber covers — tensile strength and elongation specified for the curve radius and load requirement
• Antistatic Grade: ESD-compliant belt surface for electronics assembly and pharmaceutical powder conveying where static charge accumulation on the belt must be controlled
• Cleated Options: Transverse cleats moulded onto the belt surface for conveying products on steep curves where plain belts would allow product to slide inward toward the curve centre

Technical Specifications

Applications

• Pharmaceutical Packaging Lines: Curved belt conveyors connecting tablet inspection, blister packing, and carton loading stations with space-efficient 90° or 180° curves within the packaging room layout
• Food Processing Lines: Curved conveyors in bakery, confectionery, dairy, and ready-meal production lines — food-grade belt surface and hygienic construction for direct food-contact applications
• Logistics and Distribution: Parcel and carton sorting systems in distribution centres where 90° and 45° curve belts connect straight conveyor runs to form efficient sortation layouts
• Electronics Assembly: ESD-compliant curve conveyors connecting PCB assembly, test, and packing workstations in electronics manufacturing facilities
• General Manufacturing: Component and part transfer on curved conveyors connecting machining, assembly, and inspection workstations with minimal floor space between process stages

Why Choose Skytech Ultrafab for Curve Conveyor Belts?

• Custom Designed to Floor Plan: Curve belt and conveyor designed around the actual floor plan — any curve radius and angle fabricated to fit available space without compromising throughput
• Food-Grade Certification: Food-grade belt materials with EU and FDA compliance documentation for food processing and pharmaceutical customers requiring validated contact surface materials

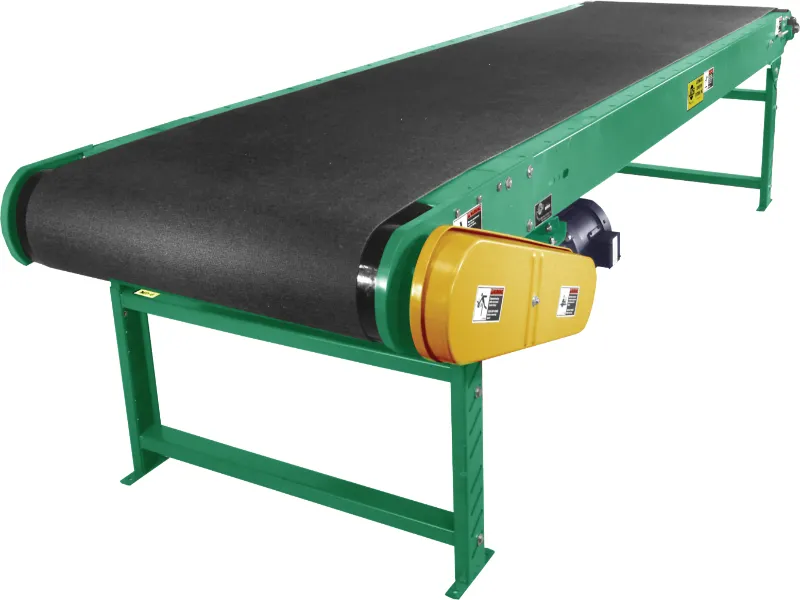

• Complete Conveyor System Support: Skytech supplies curve belts together with straight conveyor belts — single source for the complete material handling belt requirement across the facility
• Rapid Fabrication: Standard curve angles and belt widths produced in 10–14 working days; custom radius and width in 15–21 working days from drawing approval
• Technical Design Support: Application engineers advise on curve radius, belt type, surface finish, and cleating for each specific product and conveyor speed requirement
