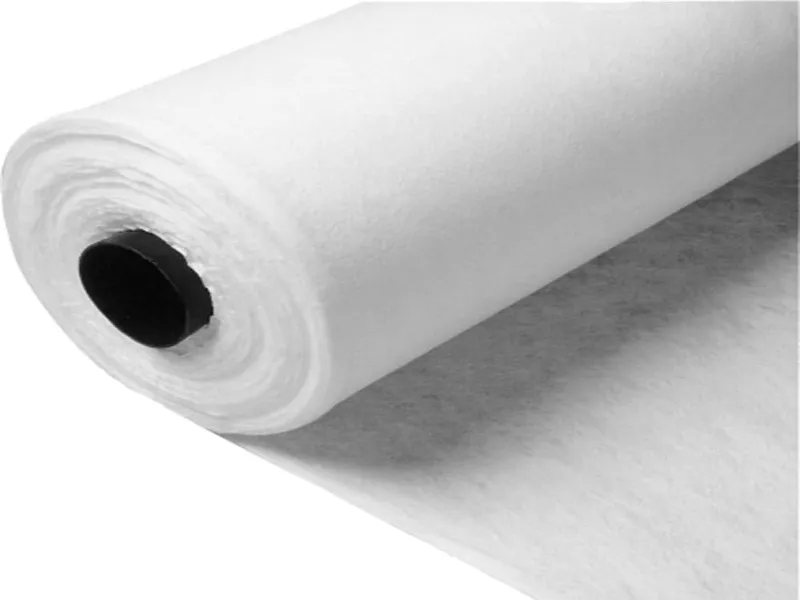

Large-Format FFP Cloth for High-Tonnage Mining Filter Presses

Skytech Ultrafab Mining FFP Cloth in 2.5M × 2.5M format is engineered for the largest filter presses in mineral processing — handling copper, gold, iron ore, coal, and phosphate concentrate dewatering at high throughput. Fabricated from premium polypropylene monofilament yarn in optimised weave constructions, each cloth is precision-cut and fabricated to 2500 mm × 2500 mm with exact feed neck position, corner drain holes, and reinforced ears to match the specific plate geometry of the customer filter press.

What Is Mining FFP Cloth (2.5M × 2.5M)?

FFP stands for Filter Press Polypropylene — the standard material designation for polypropylene woven filter press cloth used in mining operations. The 2.5M × 2.5M designation refers to the plate face dimension of large-format filter presses widely used in mine site concentrate dewatering facilities. These large-format presses handle very high slurry volumes per cycle and require cloths that combine mechanical strength, cake release, and chemical resistance across thousands of press-and-open cycles in demanding mine site environments.

Features and Benefits

• Heavy Monofilament Construction: Woven from heavy-gauge polypropylene monofilament yarn in warp and weft for maximum abrasion resistance against the coarse mineral concentrate slurries processed in mining filter presses
• Precision 2.5M × 2.5M Cut: Every cloth cut and fabricated to exact 2500 mm × 2500 mm face dimension with feed neck, drain holes, and ears positioned to the customer plate drawing — no bypass or cake bridging
• Excellent Cake Release: Smooth monofilament surface and optimised weave porosity promote clean cake drop at press opening — minimising manual cake clearing and maximising press cycle throughput
• Chemical Resistance: Polypropylene construction resists acidic, alkaline, and salt-bearing mine process water — pH 1–13 service without fabric degradation or strength loss
• Reinforced Ears and Neck: Load-bearing ear sections sewn from double-thickness cloth; feed neck reinforced with extra stitching rows — sustaining the mechanical loads of large-plate press operation
• All Weave Types Available: Plain weave for maximum particle retention; twill weave for cake release balance; satin weave for lowest blinding and fastest throughput — weave selected for the specific mineral and press duty

Technical Specifications

Applications

• Copper Concentrate Dewatering: High-tonnage copper sulphide concentrate cake formation in large-plate filter presses at mine site processing plants — high solids loading and low moisture target
• Iron Ore Concentrate: Iron ore slurry dewatering in large-format filter presses — coarse monofilament weave handles abrasive hematite and magnetite concentrate
• Coal Preparation: Fine coal and tailings dewatering in mining filter presses where chemical resistance to acidic coal washery water is required
• Phosphate and Potash: Phosphate concentrate and potash slurry dewatering in large-plate filter presses in fertiliser production operations
• Gold and Silver Leach Residue: CIL/CIP gold leach residue filter pressing where cloth must resist cyanide-bearing alkaline slurry chemistry

Why Choose Skytech Ultrafab for Mining FFP Cloth 2.5M x 2.5M?

• Exact Plate Drawing Fabrication: Every cloth cut to the customer plate drawing — feed neck position, drain hole diameter and location, and ear configuration all matched precisely to the specific press model
• Mine-Site Durability: Heavy monofilament construction selected for mine-site operating conditions — abrasion, high press pressures, and continuous-shift operation that lightweight cloths cannot sustain
• Competitive vs Imported Cloth: Indian manufacturing delivers large-format mining cloths at significantly lower cost than European or Chinese imported alternatives without compromising weave specification
• Rapid Large-Format Production: 2.5M × 2.5M cloths produced within 10–15 working days from drawing approval — minimising mine site filter press downtime during cloth change campaigns
• Technical Weave Selection: Application engineers specify the correct weave for each mineral — copper concentrate, iron ore, and coal all have different optimal cloth constructions for cake release and filtrate clarity
