Filter Press Cloth with Integrated Gasket for Leak-Free Sealing

Skytech Ultrafab Gasket Filter Press Cloth incorporates a precision-moulded or sewn gasket seal directly into the cloth perimeter, creating a single-component filter element that provides both filtration and positive liquid-tight sealing without the need for a separate gasket ring. The integrated gasket design is the preferred choice for pharmaceutical, food-grade, and high-value chemical filter press applications where filtrate bypass between the cloth and plate face would contaminate the product or create a safety or regulatory compliance problem.

What Is a Gasket Filter Press Cloth?

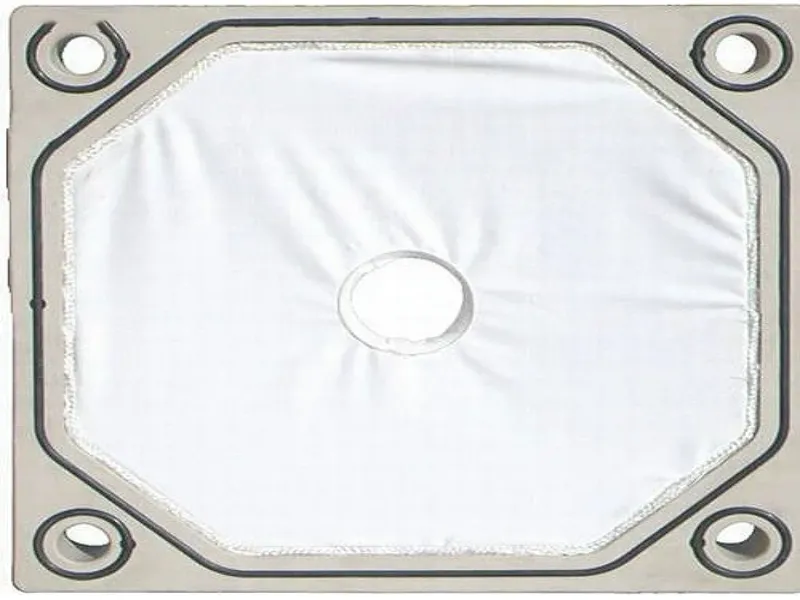

A Gasket Filter Press Cloth is a filter cloth with a compressible sealing element — typically EPDM, silicone, neoprene, or Viton rubber — permanently attached around the cloth perimeter. When the filter press closes, the plate face compresses the gasket material, creating a positive seal that prevents slurry or filtrate from bypassing around the cloth edge. This differs from standard non-gasketed cloths that rely on plate-face clamping load alone, which can allow bypass in worn or misaligned press frames.

Features and Benefits

• Integrated Perimeter Gasket: Compressible rubber gasket moulded or sewn permanently into the cloth edge — provides positive leak-free seal at the plate face without separate gasket installation or alignment
• Multiple Gasket Materials: EPDM for general aqueous and steam service; silicone for high-temperature pharmaceutical applications; neoprene for oil and solvent service; Viton for aggressive chemical environments
• Eliminates Bypass Leakage: Positive gasket seal prevents slurry or unfiltered liquid from bypassing between the cloth edge and plate face — essential where any bypass contaminates product or creates compliance risk
• Compatible with Worn Press Frames: Compressible gasket compensates for minor plate face wear, warping, or misalignment that would cause bypass in non-gasketed cloths — extends useful press service life
• Full Cloth Material Range: Gasket construction available on PP, PES, nylon, and PTFE woven cloths — gasket filter cloths in any material needed for the process fluid chemistry
• Pharmaceutical and Food Grade: Silicone and EPDM gasket compounds in FDA 21 CFR-compliant grades available for pharmaceutical, food, and beverage filter press applications

Technical Specifications

Applications

• Pharmaceutical Filter Presses: API crystallisation, wet granulate, and injectable product filtration where any cloth-to-plate bypass would contaminate the pharmaceutical product or cause batch failure
• Food and Beverage: Juice, wine, edible oil, and food ingredient filter pressing where gasket seal prevents product contamination from unfiltered liquid bypassing the cloth perimeter
• Chemical Manufacturing: High-value specialty chemical and fine chemical filter pressing where product loss through cloth bypass represents significant economic loss per batch
• Dyestuff and Pigment: Dye paste and pigment filter pressing where colour contamination from bypass would render entire batches of product off-specification
• Wastewater with Regulatory Discharge Limits: Industrial wastewater filter pressing where regulatory discharge limits require zero bypass of untreated sludge liquor around the filter cloth perimeter

Why Choose Skytech Ultrafab for Gasket Filter Press Cloth?

• Pharmaceutical Grade Documentation: FDA 21 CFR gasket compound certificates, material test reports, and extraction test data supplied for pharmaceutical filter press equipment qualification files
• Gasket Material Selection Support: Gasket compound selected for the specific process fluid — temperature, pH, solvent content, and regulatory requirements all considered to specify the correct gasket grade
• Eliminates Separate Gasket Management: Integrated construction removes the need to stock, locate, and install separate gasket rings — simplifying press maintenance and reducing the risk of gasket omission during reassembly
• OEM Plate Compatibility: Gasket profile and compression geometry matched to the specific plate design — correct compression at rated press clamping load confirmed before fabrication
• Competitive Pricing: Integrated gasket cloth typically costs less total than separate cloth plus gasket purchased independently — material cost plus installation labour savings at each cloth change
