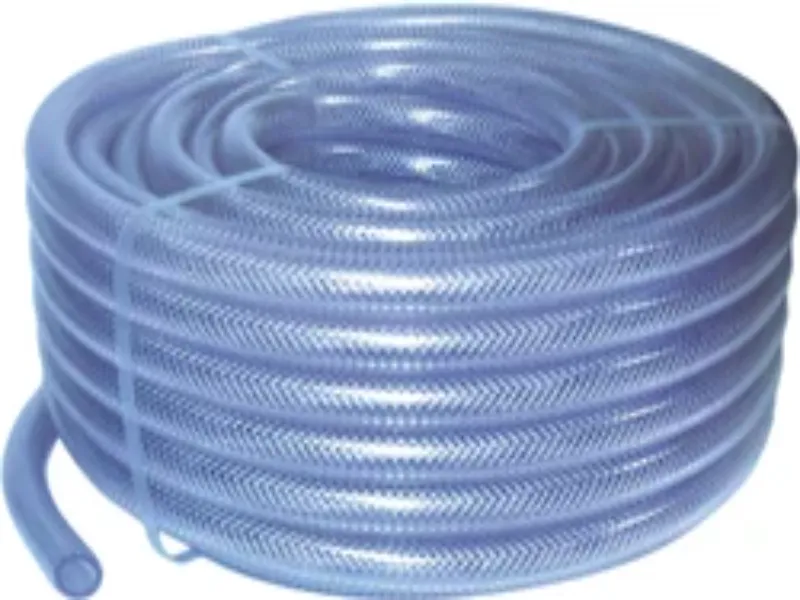

High-Visibility Nylon Braided PVC Hoses for Fluid Transfer

Skytech Ultrafab Nylon Braided PVC Hoses are reinforced flexible hoses for fluid transfer in pharmaceutical, food, chemical, laboratory, and general industrial applications. The nylon braid reinforcement layer over a clear PVC inner tube provides burst pressure resistance, kink resistance, and dimensional stability while maintaining full visual transparency — enabling operators to monitor fluid colour, flow rate, and air bubble presence during process operations without disconnecting the hose.

What Is a Nylon Braided PVC Hose?

A Nylon Braided PVC Hose is a three-layer flexible hose construction: an inner PVC tube that contacts the fluid, a middle layer of braided nylon yarn that provides tensile reinforcement and pressure resistance, and an outer PVC jacket that protects the braid from abrasion and chemicals. The nylon braid allows the hose to handle significantly higher pressures than un-reinforced clear PVC tubing of the same wall thickness — while the transparent inner and outer PVC maintains visibility through the hose wall.

Features and Benefits

• Clear Inner Tube: Crystal-clear PVC inner tube provides full visibility of the transferred fluid — operators can monitor flow, colour change, air bubbles, and contamination without disconnecting or sampling
• Nylon Braid Reinforcement: High-tenacity nylon braid increases burst pressure to 10–20 bar depending on bore size — significantly stronger than un-reinforced PVC tubing at equivalent wall thickness and flexibility
• Kink-Resistant Construction: Braid reinforcement distributes hose wall stress uniformly — prevents kinking at bends that would stop flow in un-reinforced PVC hose at equivalent bend radii
• FDA-Compliant Grades: Food-grade PVC formulation compliant with EU 10/2011 and FDA 21 CFR for direct food and pharmaceutical fluid contact — no plasticiser migration at the rated operating temperature
• Wide Bore Range: 6 mm to 50 mm inner bore covers the full range of laboratory, process, and industrial fluid transfer applications in a single product family
• Easy Fitting Connection: PVC outer layer grips standard hose barb and compression fittings securely — no clamp required for low-pressure applications; SS clamp recommended for pressurised service

Technical Specifications

Applications

• Pharmaceutical Transfer Lines: Liquid pharmaceutical intermediate transfer in process areas — transparent hose allows visual monitoring of product flow and colour without sampling
• Food and Beverage Processing: Beverage, dairy, and liquid food ingredient transfer — food-grade PVC inner tube with visible flow monitoring for process control and contamination detection
• Laboratory Fluid Transfer: Flexible connection between laboratory equipment, pumps, and vessels — transparency allows monitoring of reagent flow and bubble-free liquid delivery
• Chemical Dosing Systems: Chemical metering and dosing line connections in water treatment, pool, and industrial process dosing systems — pressure rating handles metering pump discharge pressures
• General Industrial Service: Coolant, water, and non-aggressive fluid transfer in manufacturing and industrial maintenance applications where transparent hose simplifies monitoring and troubleshooting

Why Choose Skytech Ultrafab for Nylon Braided PVC Hoses?

• Visibility Advantage: Transparent construction is the key functional advantage over opaque reinforced hoses — visible flow monitoring eliminates sampling steps and speeds troubleshooting of flow problems
• Food-Grade Certification: FDA and EU 10/2011 compliance certificates for food and pharmaceutical contact applications — essential documentation for quality audits and HACCP programmes
• Cut-Length Supply: Supplied in 25 m and 50 m rolls or pre-cut to specified lengths with or without factory-fitted end fittings — reduces on-site cutting waste and ensures consistent hose length
• Pressure and Kink Rating: Nylon braid provides pressure rating and kink resistance needed for pump-pressurised systems that plain PVC tubing cannot handle — one product replaces both tubing and hose applications
• Fast Delivery: Common bore sizes in stock for same-week dispatch — critical for process line maintenance where hose failure requires immediate replacement to resume production
