Extruded Silicone Rubber Cords for Industrial Sealing Applications

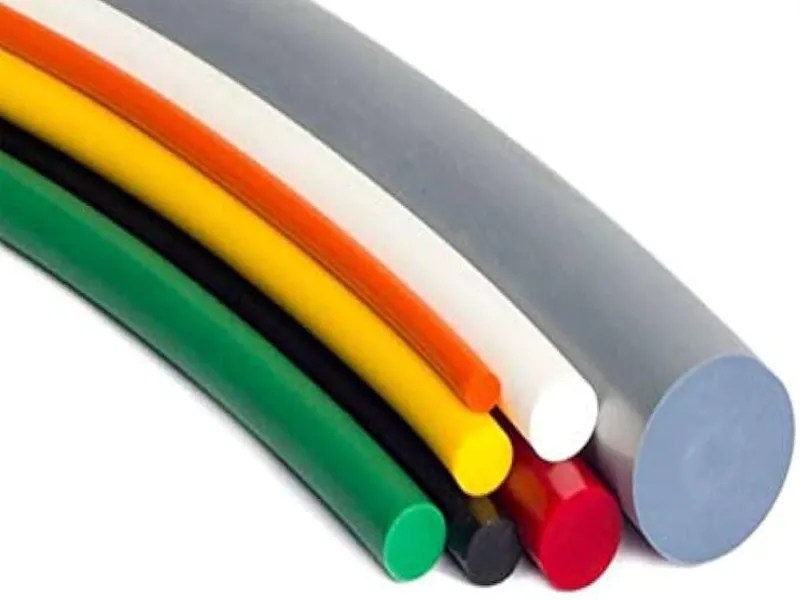

Skytech Ultrafab Silicone Rubber Cords are continuous-length extruded silicone profiles supplied in round solid, round hollow, square, rectangular, and custom cross-sections for use as compression seals, door seals, gasket material, profile seals, and equipment vibration isolators in pharmaceutical, food, cleanroom, and industrial applications. Manufactured from FDA-compliant platinum-cured silicone, they combine high-temperature resistance, chemical inertness, flexibility at -60°C, and long fatigue life in repeated compression cycles — making them the standard sealing cord material wherever conventional rubber would degrade.

What Is a Silicone Rubber Cord?

A Silicone Rubber Cord is a continuous extrusion of silicone elastomer in a consistent cross-sectional profile — most commonly circular in cross-section, either solid or hollow. In sealing applications, the cord is cut to length and formed into a ring or frame seal by vulcanising or bonding the cut ends together, or by installing it in a groove where its cross-section is compressed by the mating surface to create a seal. Hollow cord compresses at lower force than solid cord — useful where the mating surfaces exert only light clamping pressure.

Features and Benefits

• FDA-Compliant Silicone: Platinum-cured silicone compound compliant with FDA 21 CFR 177.2600 — safe for direct food and pharmaceutical product contact, suitable for use in GMP-regulated manufacturing equipment
• Wide Temperature Range: Continuous service from -60°C to +200°C — remains flexible and elastic at cryogenic temperatures and seals reliably at autoclave and process vessel operating temperatures
• Solid and Hollow Profiles: Solid cord for high-compression sealing applications; hollow cord for light-compression sealing where inflated cross-section is needed to bridge large gap tolerances between mating surfaces
• Multiple Diameters: 2 mm to 50 mm diameter in round profiles; custom square, rectangular, and special cross-sections available for groove-specific sealing designs
• Excellent Compression Set Resistance: Platinum-cured silicone retains elasticity and sealing force after long-term compression — unlike EPDM or neoprene which progressively lose recovery force under sustained compression
• Easy Fabrication: Silicone cord cut to length with scissors or knife and joined by silicone adhesive or vulcanising — simple field fabrication of gasket rings and frame seals without special tooling

Technical Specifications

Applications

• Pharmaceutical Equipment Sealing: Door seals, hatch seals, and access panel gaskets on pharmaceutical vessels, dryers, granulators, and packaging equipment — FDA-compliant silicone required for product-contact surfaces
• Cleanroom Construction: Perimeter seals between cleanroom wall panels, ceiling tiles, and light fixtures — silicone cord ensures particle-tight construction at joints without adhesive that could outgas
• Food Processing Equipment: Sealing cord for food processing vessel covers, conveyor guides, and machine doors — food-grade silicone resists steam cleaning and acidic and alkaline food products
• Autoclave Door Seals: Cut-and-join autoclave door frame seals where a custom-length silicone cord ring is fabricated to fit the door rebate — alternative to moulded one-piece door gaskets
• HVAC Duct Sealing: Vibration isolation and duct joint sealing in HVAC systems — silicone cord absorbs vibration and seals duct flanges across the full temperature range of air handling systems

Why Choose Skytech Ultrafab for Silicone Rubber Cord?

• Platinum-Cure Quality: Platinum-cured silicone cord maintains sealing performance significantly longer than peroxide-cured cord — lower extractables, better compression set, and longer service life in pharmaceutical service
• FDA Documentation: 21 CFR compliance certificate and platinum-cure confirmation supplied for pharmaceutical equipment qualification — essential for GMP contact material documentation
• Complete Custom Profile Service: Any cross-section profile extruded to customer drawing — round, D-section, P-section, or complex profiles for specific groove and sealing geometries
• Cut-Length Supply: Supplied in continuous rolls (5–25 m) or pre-cut to specified lengths — reduces on-site waste and ensures consistent cord length across a multi-piece installation
• Wide Silicone Product Range: Order silicone cord together with Skytech O-rings, inflatable gaskets, and autoclave gaskets — complete pharmaceutical silicone sealing programme from a single manufacturer
